Application Walkthrough: Set up Your Perfect Sound
Watch this video to see how to configure your DSP chain, and start streaming.
System-Wide DSP Capabilities
Dynamic Equalization
Apply 10-band or custom parametric EQ filters in real-time. Use intelligent tracking to automatically switch presets based on album or genre metadata.
Precision Output
Maintain signal integrity with configurable Headroom and advanced noise-shaping Dithering (T-PDF, etc.) before final output. Essential for down-conversion.
Universal Output
Stream processed audio to local DACs, AirPlay, DLNA/UPnP, and dedicated ANP Nodes, all managed through one cohesive interface.
The AAEQ Node Protocol: Jitter-Free Stream
ANP is a purpose-built, low-latency, secure network audio protocol that ensures bit-perfect transfer and absolute clock synchronization for ultimate audio quality.
Micro-PLL Clock Synchronization
Uses fine-grained drift telemetry (PPM) to adjust the sender's rate, locking the stream to the DAC's local clock for true jitter elimination (Target: $< 5\text{ ppm}$).
Bit-Perfect Verification & SRTP Security
Guarantees data integrity with per-window CRC32 checksums. Streams are encrypted using mandatory SRTP with AES-GCM (New in v0.3).
DSP & Convolution Transfer
Transfers the full DSP state (EQ, Dithering) to capable Nodes, enabling Convolution Filter (Room Correction IRs) application directly at the playback endpoint.
Multi-Room PTP Sync & DSD
Supports sample-accurate gapless playback and uses IEEE-1588 (PTP) for microsecond-accurate multi-endpoint synchronization. Fully supports native DSD/DoP formats.
ANP v0.3: DSP_UPDATE Control Message Example
{
"DSP_UPDATE": {
"profile_id": 42,
"headroom_db": -6.0,
"dithering": "tpdf_24bit",
"equalizer": {
"name": "Rock Preset",
"bands": [
{"frequency": 62, "gain": 4.0, "q": 1.0},
{"frequency": 1000, "gain": -2.0, "q": 1.0}
]
},
"convolution": {
"enabled": true,
"filter_id": "living_room_1_2025_48k"
}
}
}
Example of Server pushing full DSP chain to ANP Node.
AAEQ In Action

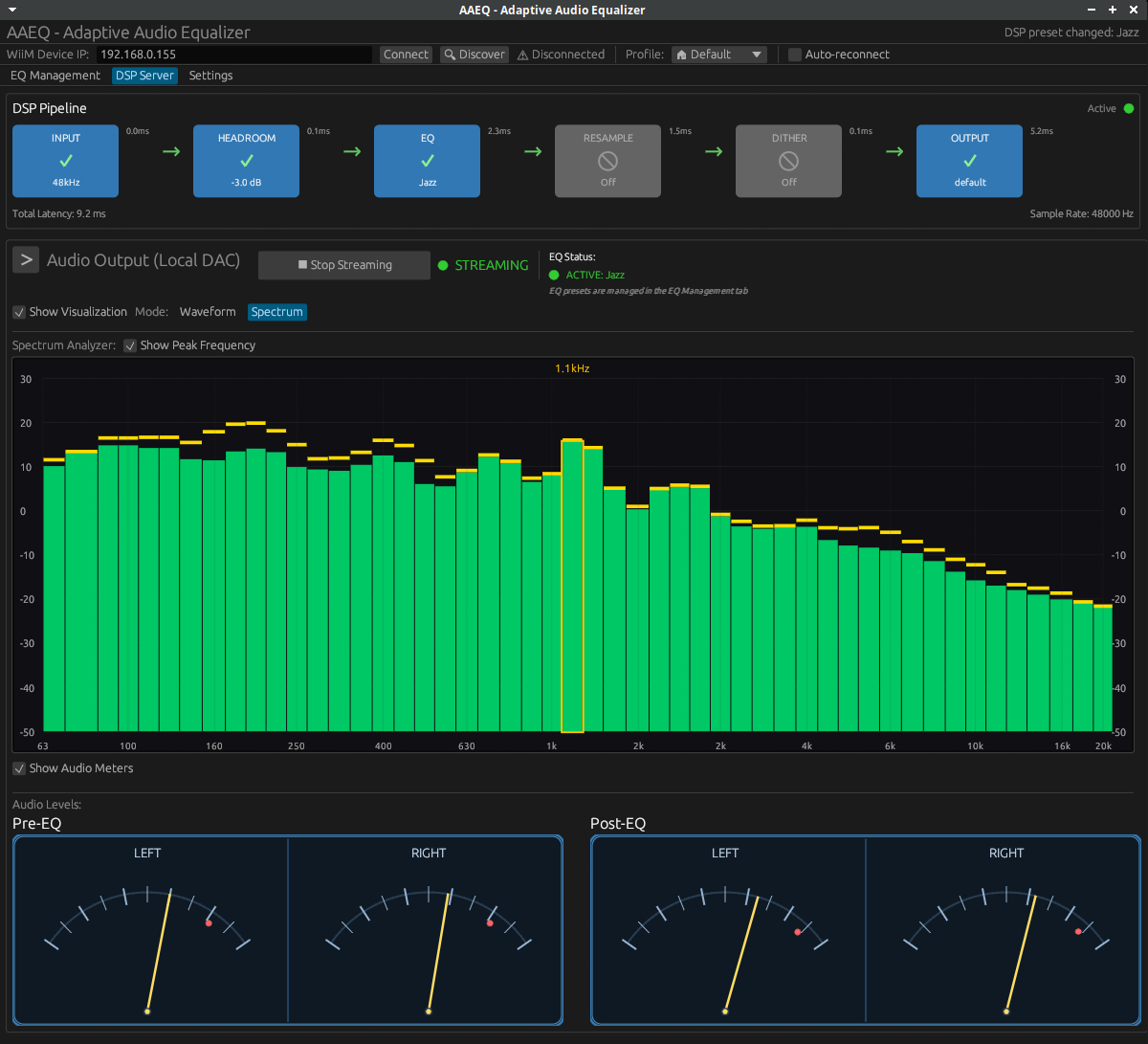

Real-time EQ Curve & Spectrum Analyzer

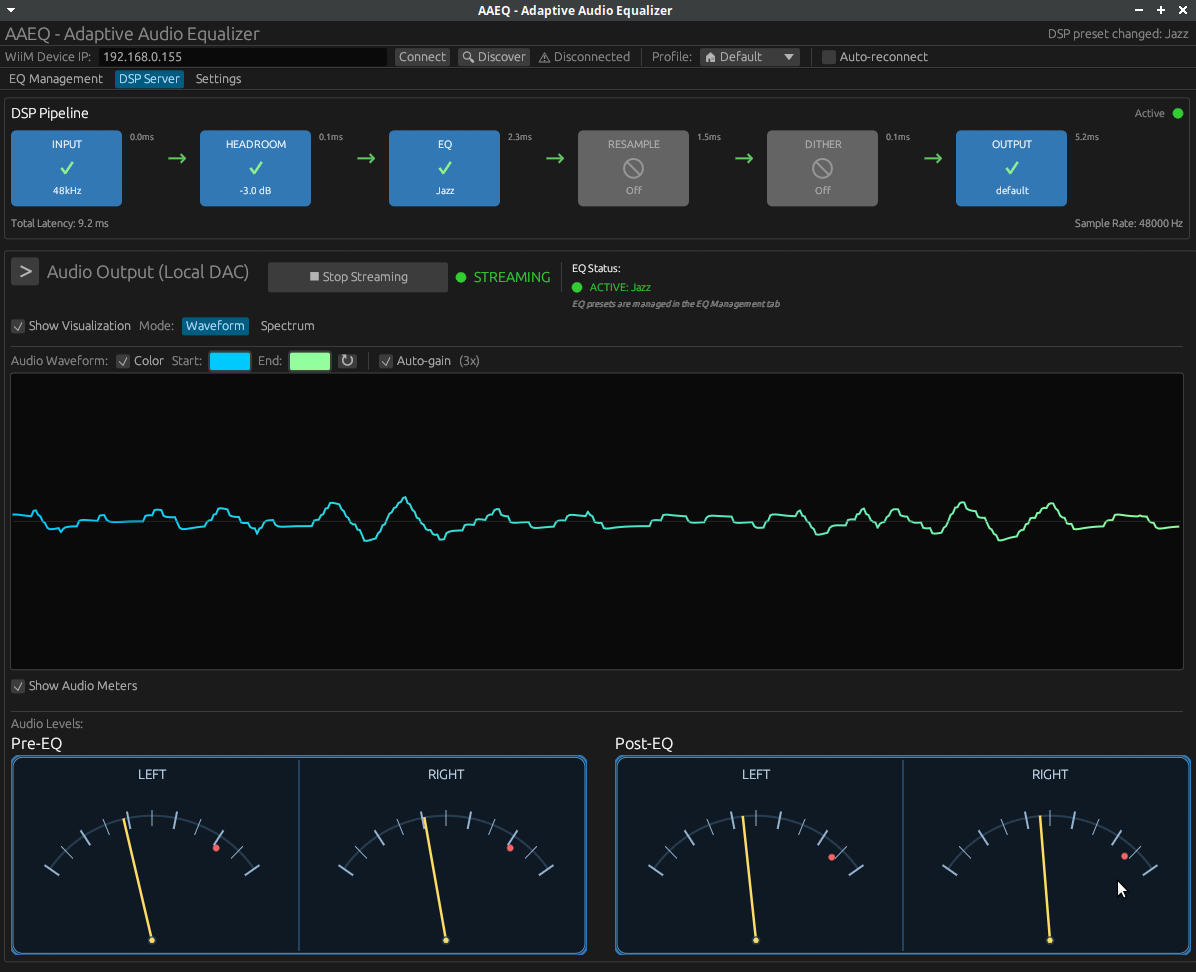

Device & DSP Pipeline Configuration

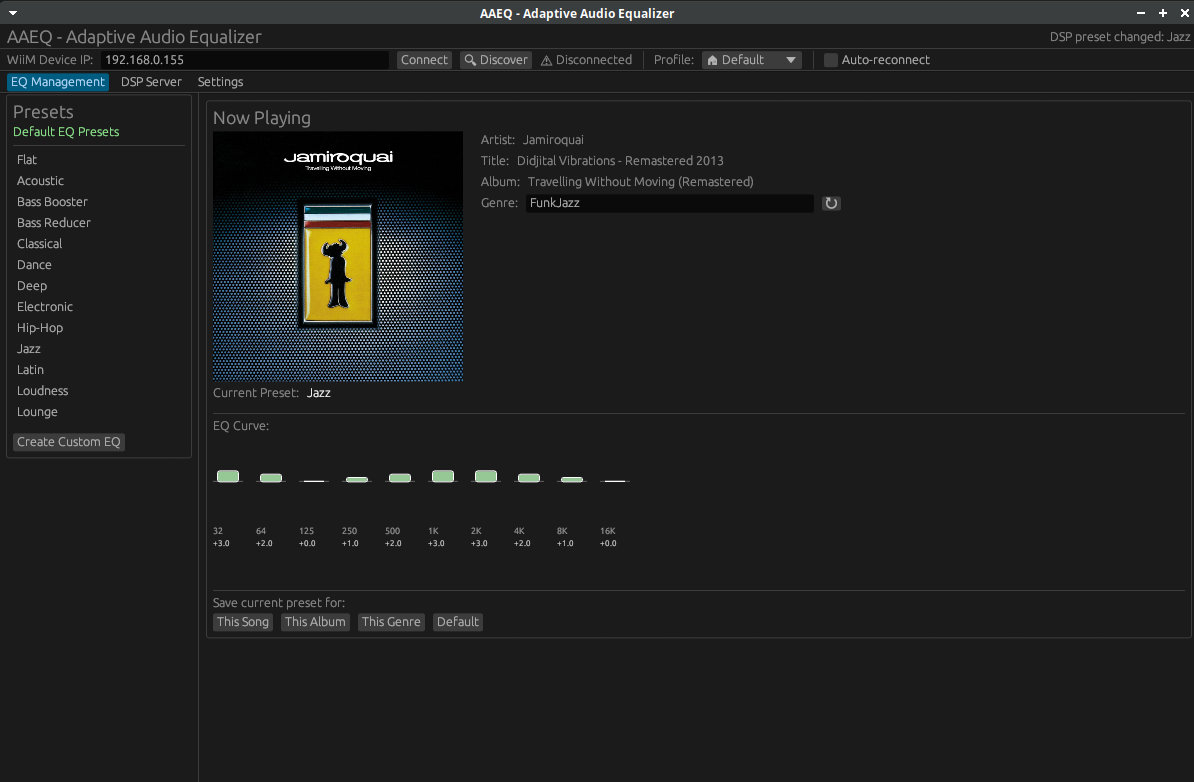

AAEQ EQ Settings
Start Your Hi-Fi Journey
Download the AAEQ application and take control of your audio quality today. Available for Windows, macOS, and Linux.
